The portable particle counter is mainly designed for fluid particle detection that often requires changing locations. While inheriting the high standards and quality of Honghe products, we have also thoughtfully designed many operational details for the convenience of operators. This article will take you to understand the characteristics and differences of several portable particle counters sold by Honghe.

Compared to some portable particle counters on the market,

The most obvious advantage of Honghe is its built-in lithium battery,

Realize instant application and timely transfer.

Part1

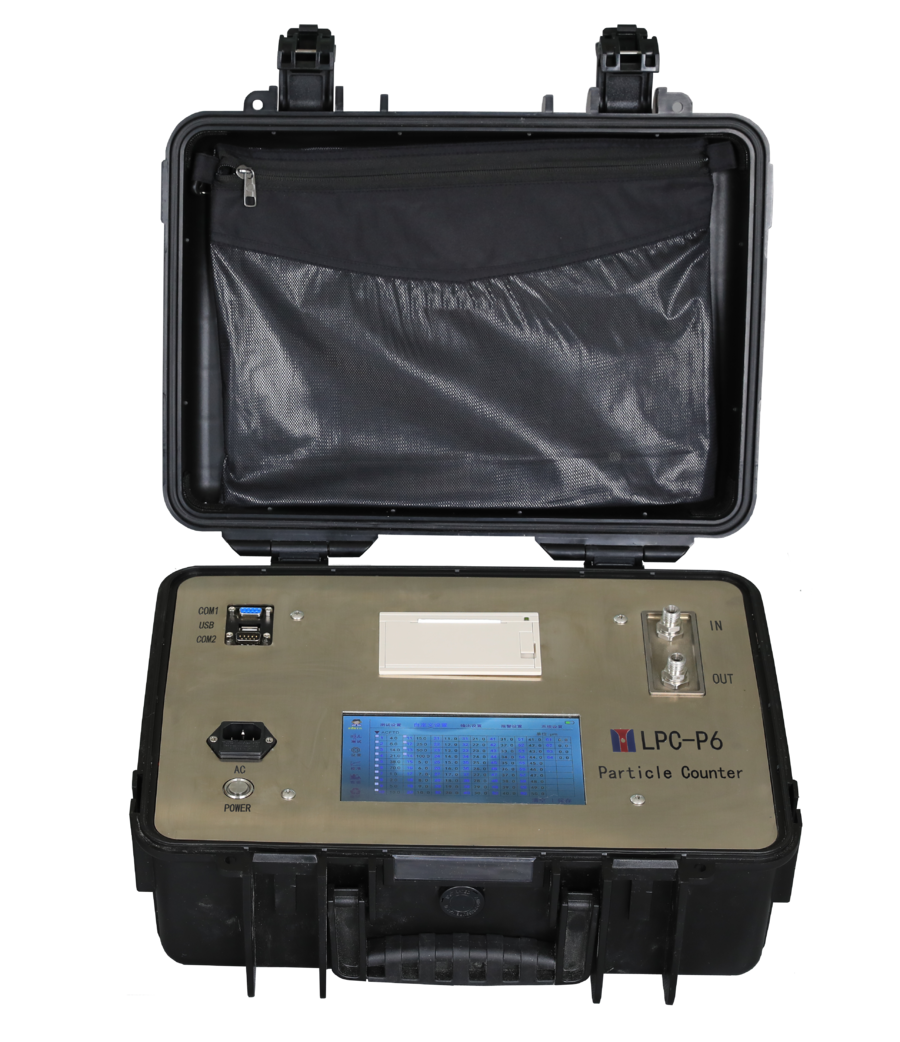

Built in lithium battery model

Built in lithium battery, ultra long battery life, can be used without external power supply;

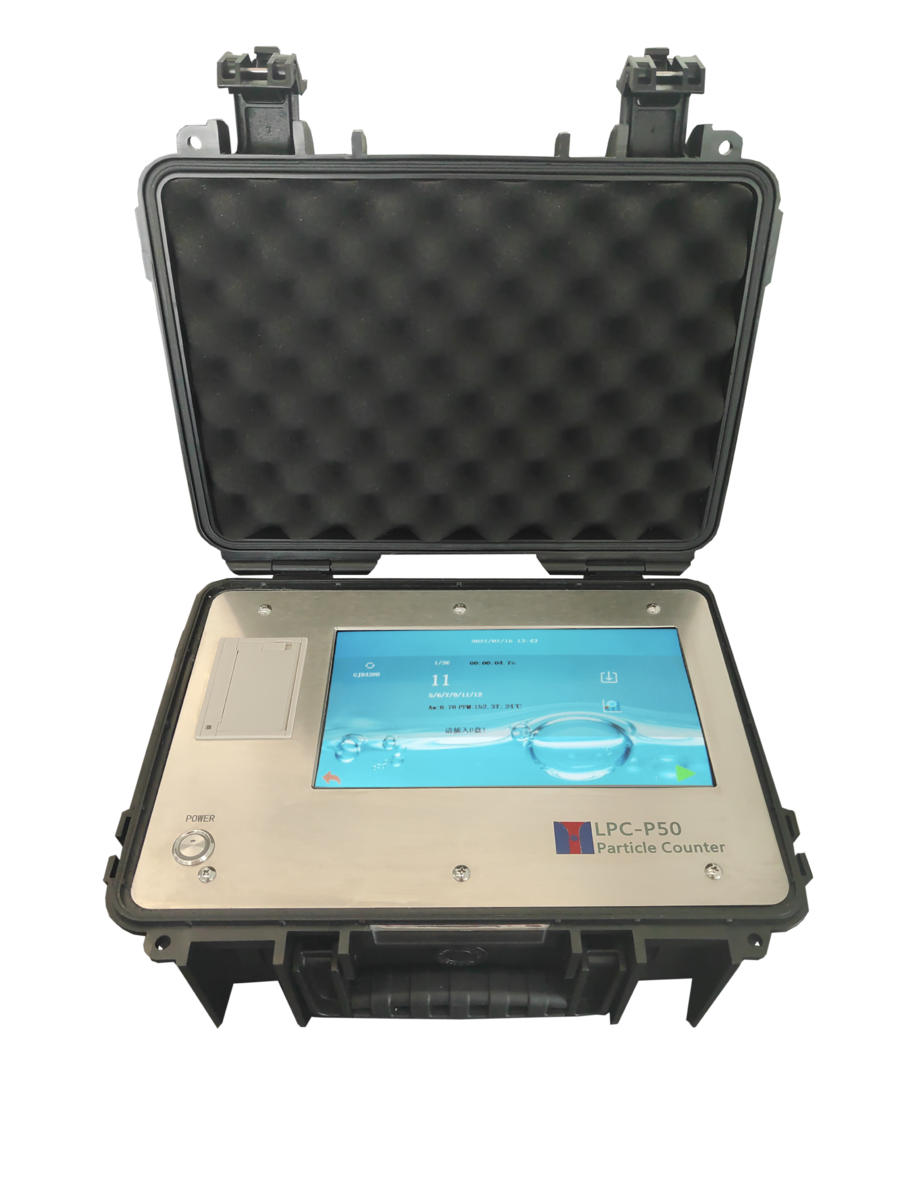

High precision bidirectional plunger pump sampling method, adjustable injection speed, high sampling volume accuracy (P50 is the metering pump);

Built in multiple commonly used standards such as GJB-420A, GJB-420B, NAS1638, ISO4406, SAE4059, and Г OCT17216. One test can provide data results for all built-in standards (P6 has more than ten commonly used standards built-in);

Color touch screen operation, Chinese and English input, freely switchable language interface, with preset, input, modification, storage, upload functions, easy and fast operation;

Equipped with RS232 interface, it can be connected to a computer or laboratory platform for data processing, and USB can also be used for data storage;

工程箱式&旋转支架式

Optional pressure reducing device for online high-pressure measurement;

Can be connected to an external pressure chamber to form positive/negative pressure, achieving detection of high viscosity samples and negative pressure degassing of samples;

Multiple sampling containers such as standard sampling bottles and cups can be used, or directly connected to hydraulic systems for online testing to meet the testing requirements of different industries;

Embedded design, high-strength casing, easy to carry, suitable for various types of construction machinery.

Part2

Compact and economical model

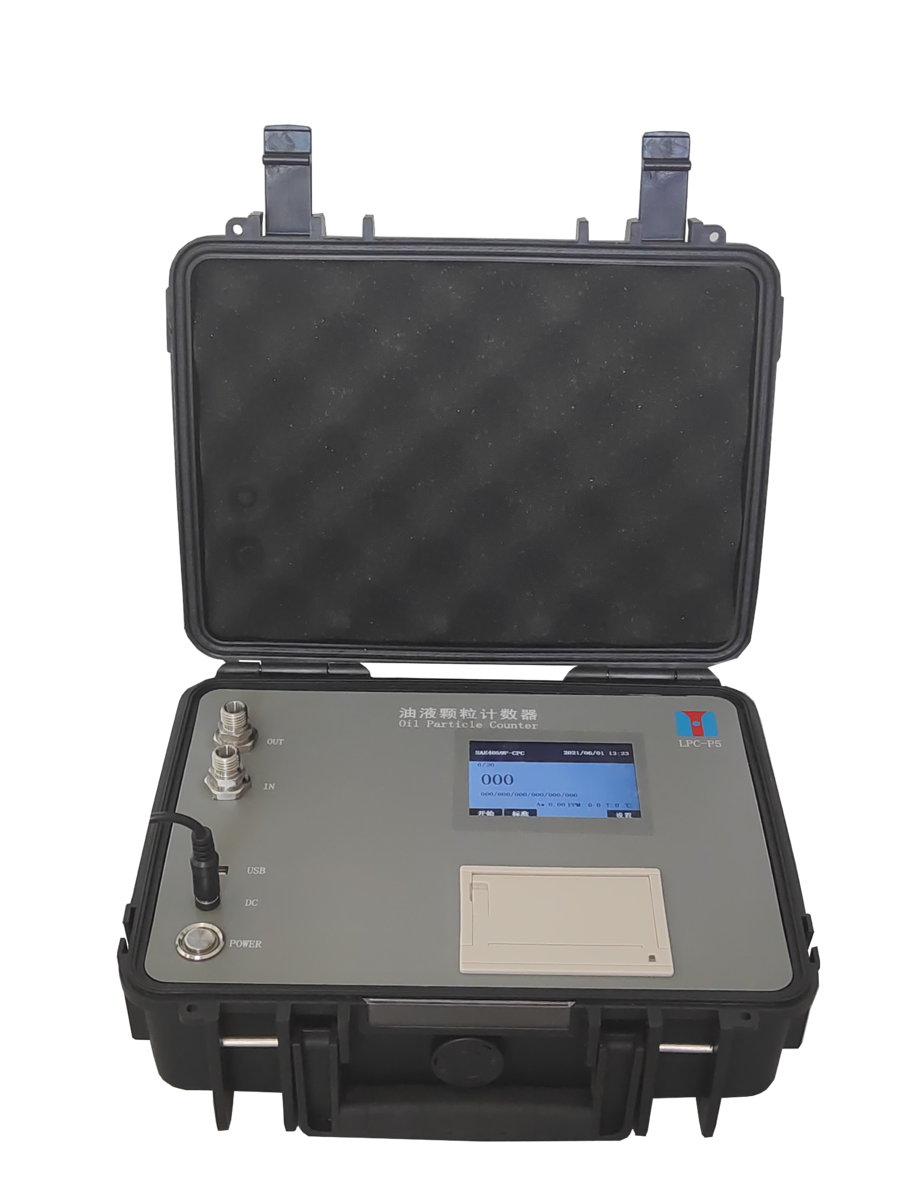

In the portable family, there is also an "economical" type, namely LPC-P5, which has no built-in lithium battery and supports 220V/50Hz plug-in use. It is compact, lightweight, and cost-effective.

Built in particle pollution level standards such as ISO4406, NAS1638, SAE4059 (integral and differential), GJB420A, GJB420A, Г OCT17216, GB/T14039, etc;

Built in data analysis system, capable of automatically determining levels based on standards, with automatic data processing and printing functions;

Built in calibration function, can calibrate according to standards such as GB/T21540, ISO4402, GB/T18854, etc;

Built in micro water sensor and temperature sensor for multi parameter measurement;

Can be connected to an external pressure chamber to form positive/negative pressure, achieving detection and sample degassing of high viscosity samples;

The pipeline is made of 316L and PTFE materials to meet the testing requirements of various organic solvents and oils;

Equipped with volume flushing and duration flushing modes, convenient for users to use and maintain the equipment;

Bilingual in Chinese and English, one click switch, with preset, parameter modification, and storage functions, easy and fast operation;

Ultra large storage, which can be stored inside the instrument or on external storage devices;

Embedded design, high-strength casing, compact and lightweight, easy to carry.

Part3

Purchase suggestions

When choosing instruments, it is important to understand some basic information about the cooperating enterprises, such as their business scale and reputation;

To fully understand the technical parameters of the product and whether the product quality of the cooperative enterprise is stable and reliable;

Understand the various services of the enterprise, the professionalism of sales personnel, and the after-sales service of products.
