Details see quality, LPC-M leads the trend of online monitoring to a new height
Click：Time：2022-10-25 00:00:00
We stick to it
Precision Manufacturing
In recent years, the application of advanced detection instruments such as liquid particle counters in the civilian industrial field has reached unprecedented heights and breadth, while also placing higher demands on the quality and functionality of the instruments. According to the applicable scenarios and working methods, liquid particle counters are mainly divided into three types: desktop, portable, and online. Today, we will focus on the "economical and applicable" LPC-M on the online track, and compare it with the common "small online" in the market from multiple dimensions, and explain the reasons for choosing us.
Starting from the appearance, let's talk about it

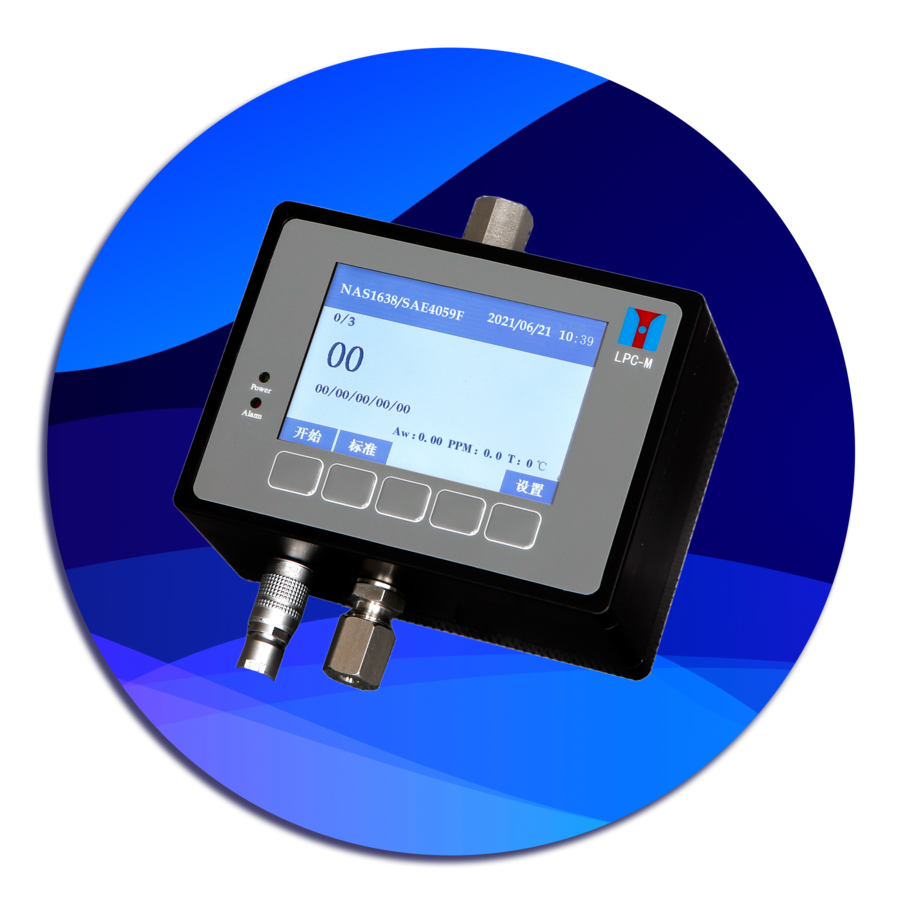

The Honghe LPC-M sensor and housing adopt an integrated design, which provides better resistance to high-pressure impact;
The IP protection level can achieve IP67 (standard configuration is IP56), with stronger anti-interference ability;
Compared with the traditional "flat in and flat out" inlet and outlet design, LPC-M innovatively adopts a "bottom in and top out" mode, which is more conducive to minimizing the interference of online bubbles on test results;
Retain the traditional thin film button method while adopting color touch screen operation for customers to choose from; The screen has a larger proportion, which is more beautiful and can display and set the multifunctional interface of the instrument more intuitively, making it convenient for users to operate.
Let's take a look at the configuration again
In terms of configuration, the year-on-year advantage of LPC-M is also very obvious:

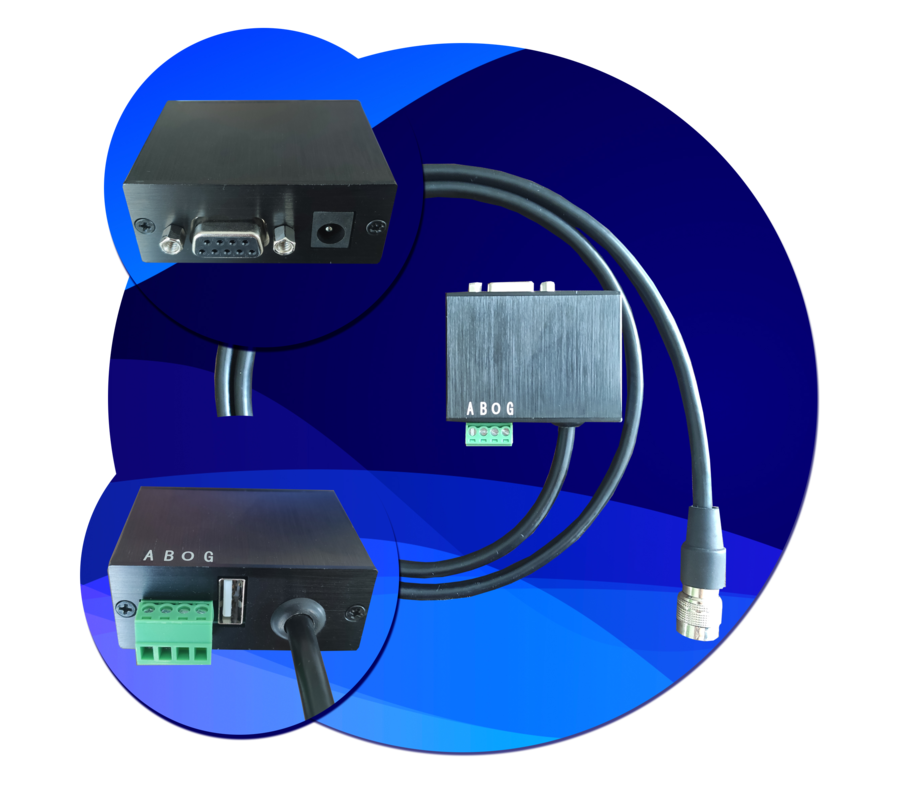

Equipped with both RS232 and RS485 interfaces, supporting standard Modbus protocol, it can be connected to computers, upper computers, printers, PLC systems or other devices for data monitoring and processing;
Ultra large storage, the instrument itself provides 1000 sets of data storage space and supports USB storage;
Equipped with volume flushing and duration flushing modes, convenient for users to use and maintain the equipment;
Optional 4G/5G module, supporting remote data monitoring, historical data, and curve query on mobile phones or computers;
Optional moisture and temperature sensor modules can be configured to output four types of parameter information simultaneously, achieving multi parameter monitoring.
Other performance characteristics
Adopting the principle of photoresist (light blocking) method, using high-precision laser sensors, with small size, high accuracy, and stable performance;
Suitable for on-smatchite online detection, it can monitor the particle pollution level in the oil system in real time;
Built in data analysis system, capable of displaying real data of particle size in each channel and automatically determining sample grade;
The standard model can directly withstand a pressure of 100 kilograms and can be equipped with a pressure reducing valve for online high-pressure measurement;
Built in particle pollution level standards such as ISO4406, NAS1638, SAE4059, GJB420A, GJB420A, Г OCT17216, GB/T14039, etc., can provide all built-in standard results in one test;
Built in calibration function, can calibrate according to standards such as GB/T21540, ISO4402, ISO11171, GB/T18854, etc;
It can be tested continuously or the testing time interval can be set arbitrarily;
Dual system of Chinese and English, customers can freely switch, suitable for export.
